attach window sashes - Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000
Fitting Station FA2000

Fitting Station FA2000

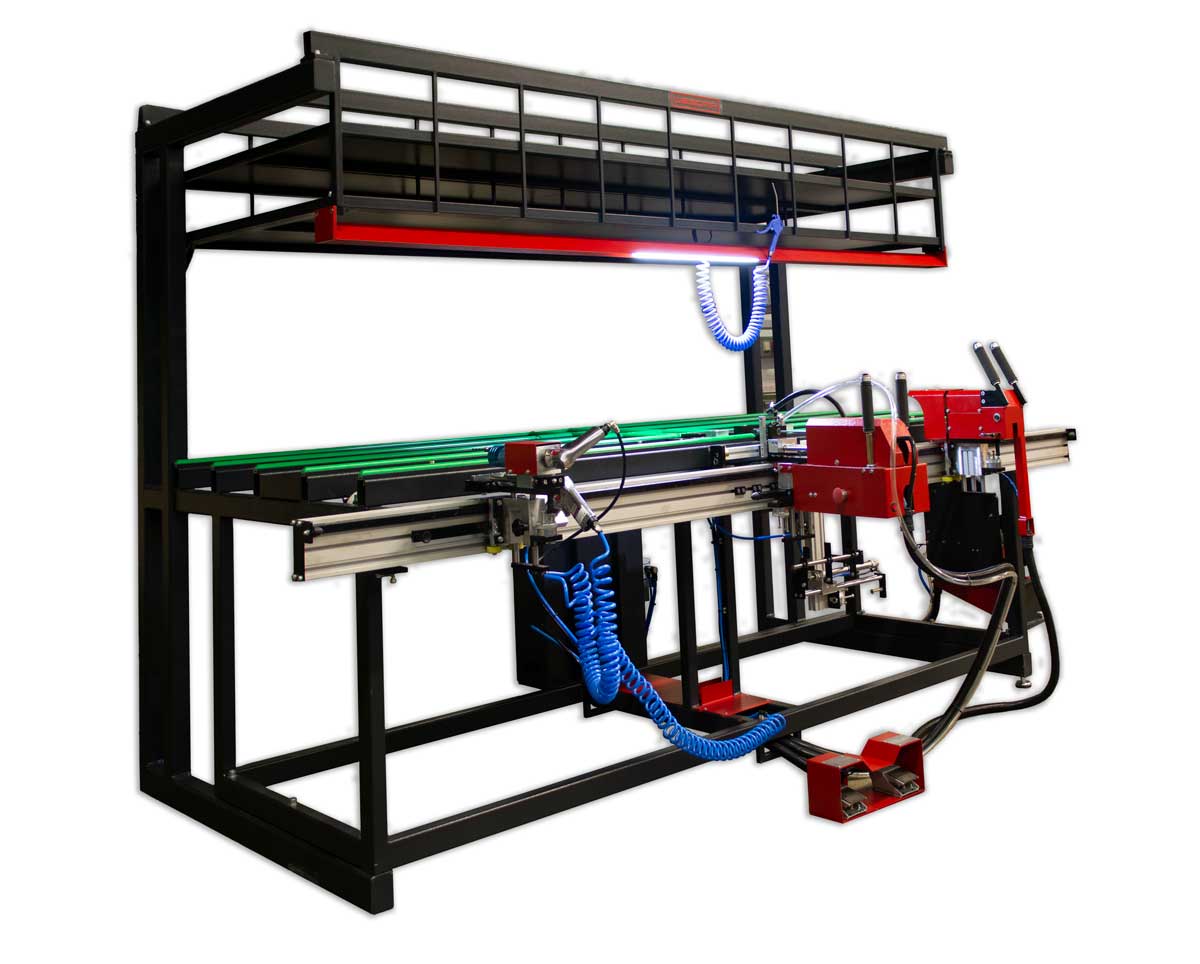

For quick and precise assembly of the tilt and turn fitting and the corner hinge. Versatile and variable in the equipment features. For plastic and wooden profiles. Use in PVC, wood, and aluminum.

Product Inquiry
SKU: FA2000 Category: Tags: , , , , , , , , , , , , , ,

Fitting Station FA2000

Why Choose WEGOMA?

  • Sash assembly table (adjustable template does not require a tool change)
  • Automatic sash centering system
  • Work table 110.24 × 78.74 in (working width 98.43 in)
  • Automatic length measurement of the fitting – constant, centered or off-center
  • Front-mounted screw unit working at several working

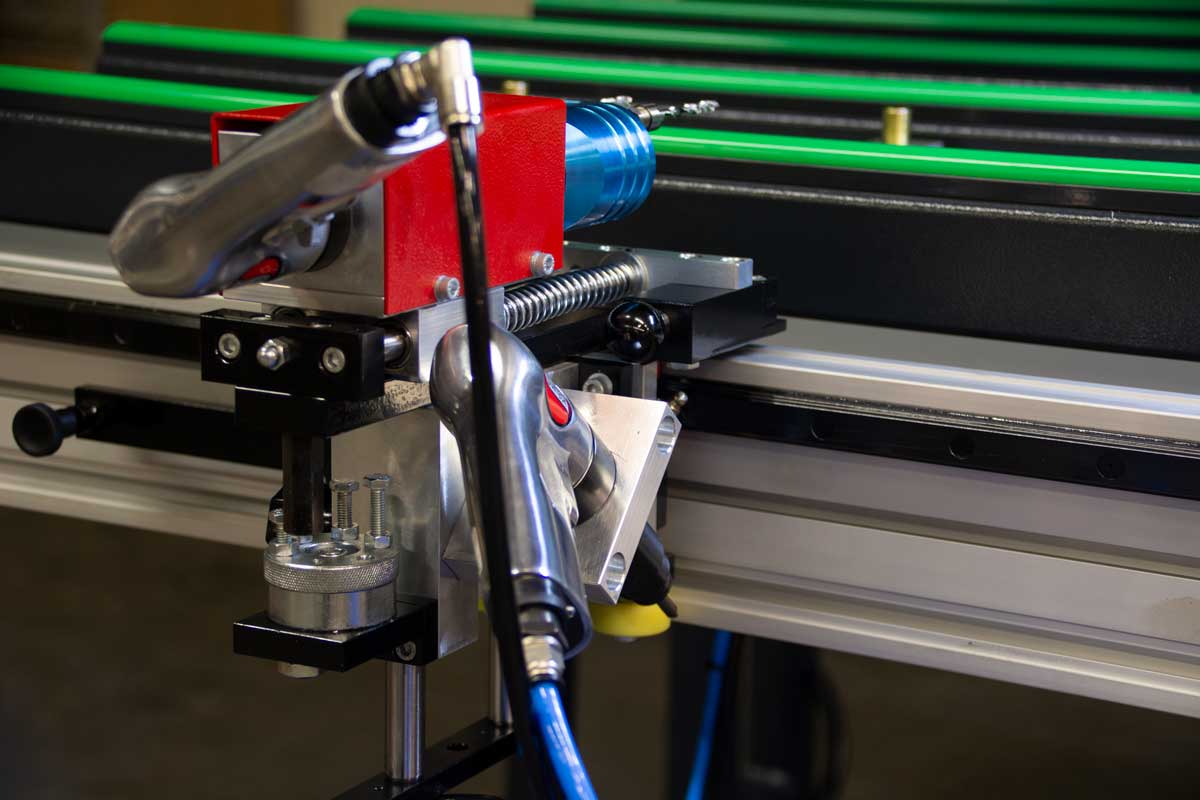

  • Torque screwdriver system (alternatively with depth stop)
  • Screw unit running on linear guides
  • Automatic screw feed
  • Slide strips as table supports (alternatively felt)

Special Accessories

  • Hydropneumatic fitting punch (straight cut)

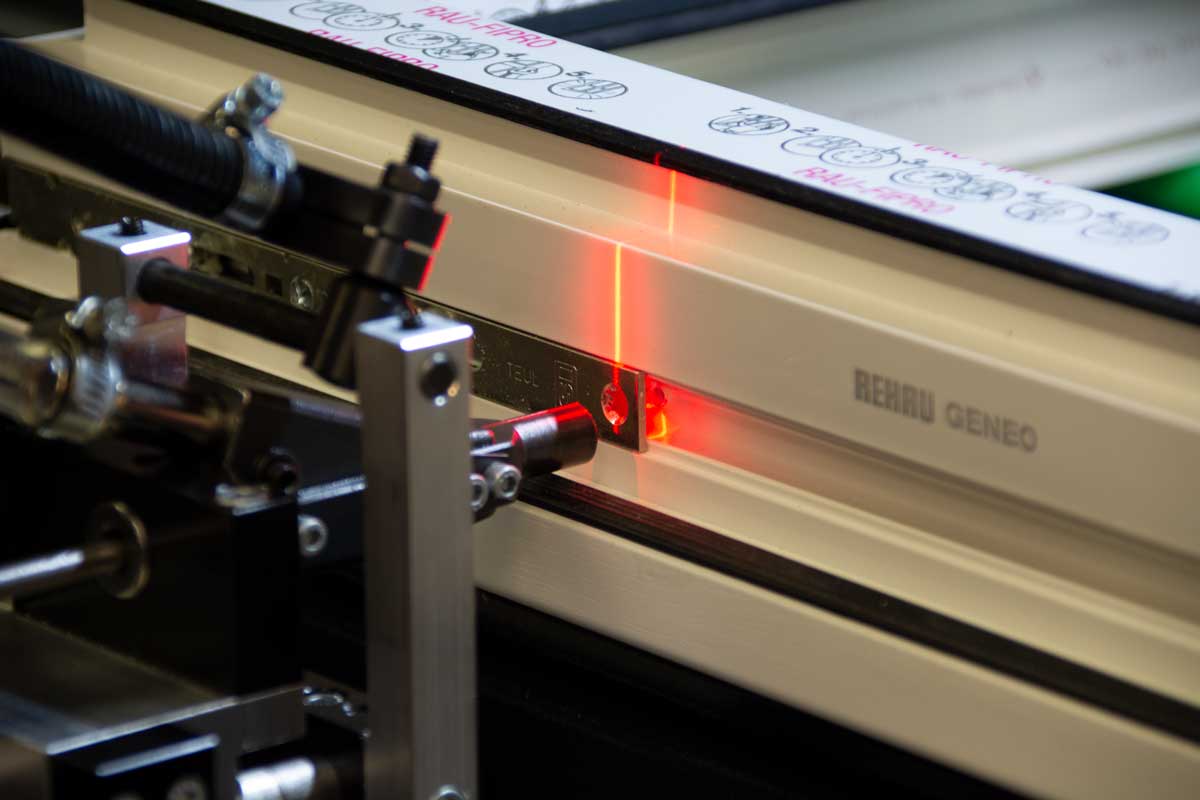

  • Laser target acquisition screwdriver

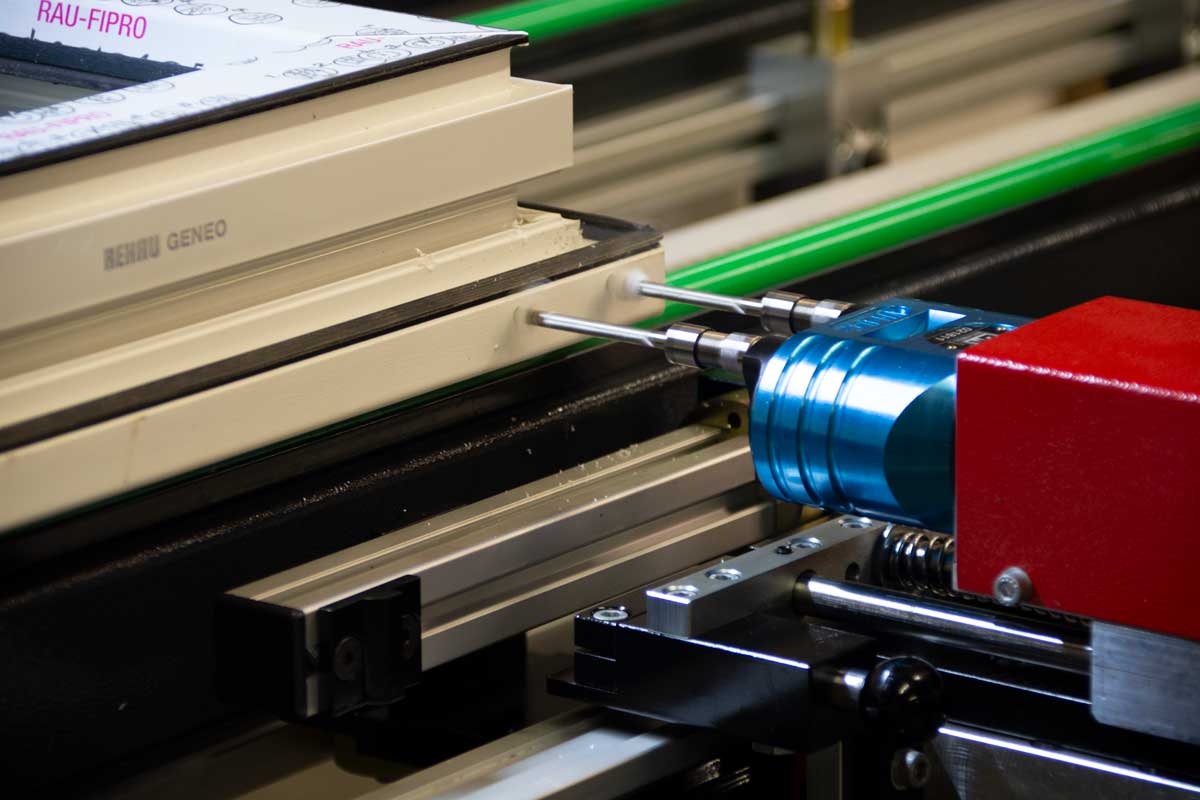

  • Triple drilling unit
  • Corner hinge drill

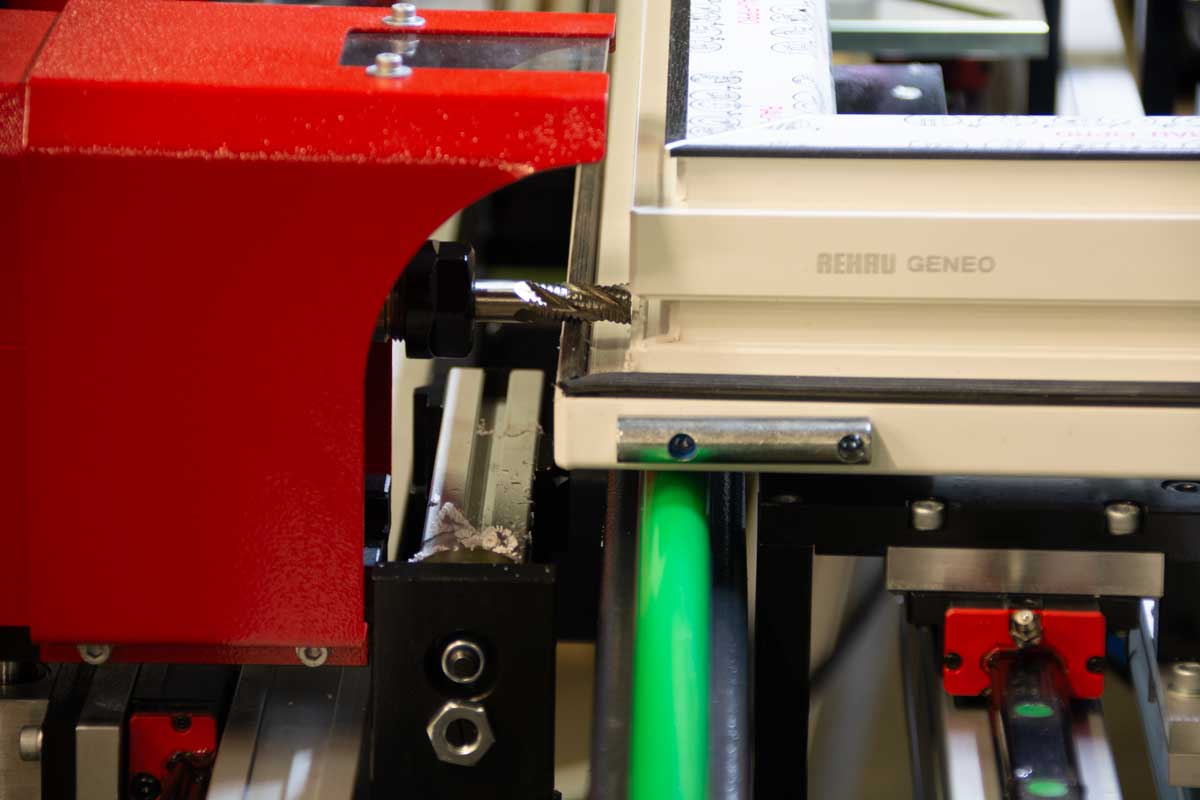

  • Lock case milling unit
  • Fitting shelf
  • Table unit with brushes / felt

Technical Data

Length:129.92 in
Width:69.88 in
Height:33.46 in
Width extension:27.56 in
Weight:992 lbs
Voltage:400 V – 220 V – 500 V triphase
Power of lock case milling unit:1.2 kW
Power of triple drilling unit:1.8 kW
Speed of lock case milling unit:2800 / 11200 rpm
Speed of triple drilling unit:1450 rpm
Max. screw length:1.77 in
Air connection:87 – 116 psi
