Automatic Line SC1000
Why Choose WEGOMA?
- Profile independent editing of single pieces
- 19.69 ft feed
- Automatic clamping, positioning & removal
- Motoric adjustment of the saw blade angle
- 4kW motor
- ca. 200 parts in 8 hours

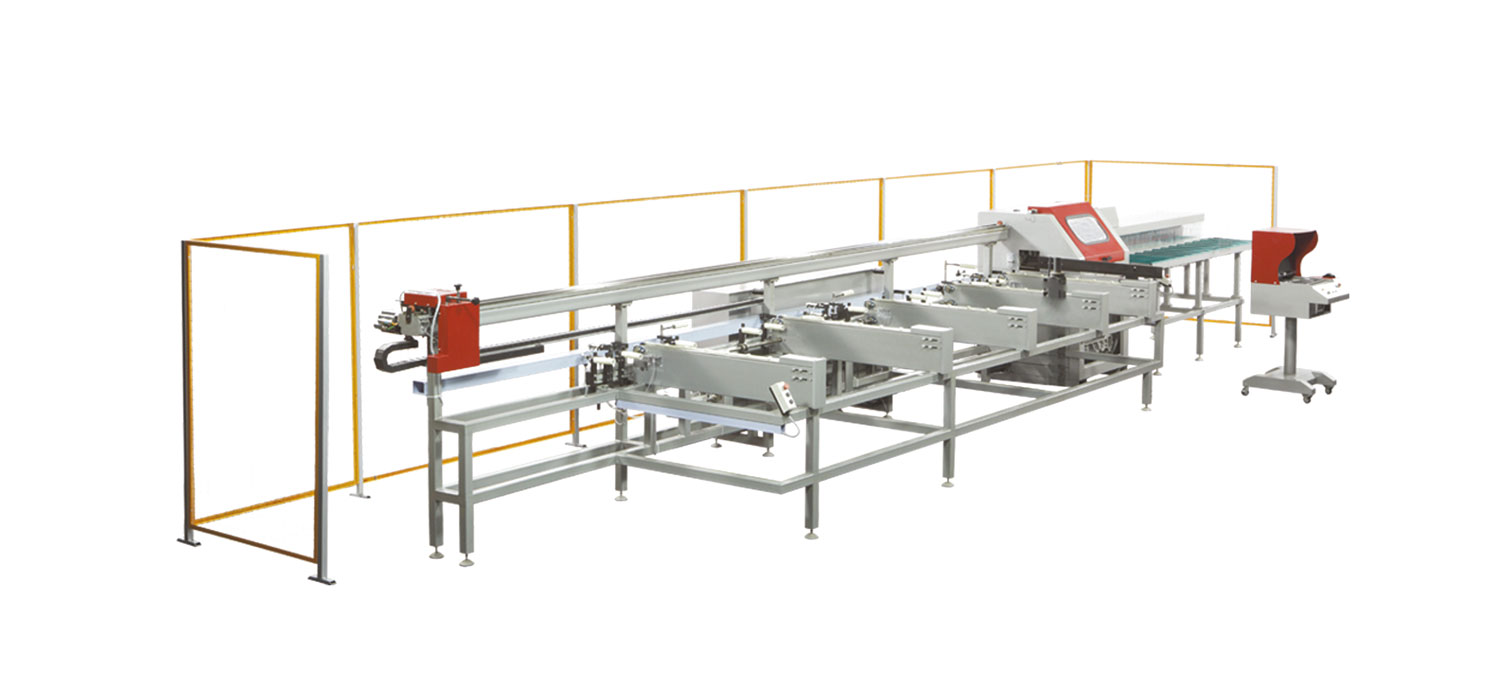

Automatic Line SC1000
The SuperCut with fully automatic loader system for profiles up to 6m can cut profile independent with a +- 0.0039 in precision. With the motoric adjustment of the saw blade angle it is possible to cut profiles from 45° up to 135° stepless. The removal of the parts takes place via a pusher system.
Technical Data
| Voltage: | 400 V – 220 V – 500 V triphase |
| Power of each motor: | 4 kW |
| Input: | 19.69 in |
| Feeding speed: | 196.85 in/min |
| Cutting precision: | +/- 0.0039 in |
| Air connection: | 87 – 116 psi |
| Dimensions (in ft): | 34.77 x 9.51 x 5.25 ft |
| Weight: | 5511 lbs |
